Down-paper Packaging Machine
Brand HIWEI PACK
Product origin CHINA
Delivery time 30 DAYS
Supply capacity 20 SETS/MONTH
1. Can be equipped with remote diagnostic system,help customer to troubleshooting in minimum duration.
2. The packing machine with self -lubrication system,prolong mechanism life,and reduce labor cost
3. The packing machine with pouch width adjustable mechanism,unit can be converted to different pouch just by one button in few seconds
4. Unit made by highly strict manufacturing process,most components are provide by international top brand
5. Comply with international safety & hygienic regulation,each unit shall pass safety,rohs,physical properly and function test
6. Attractive appearance,simple operation,reliable performanch,low failure rate

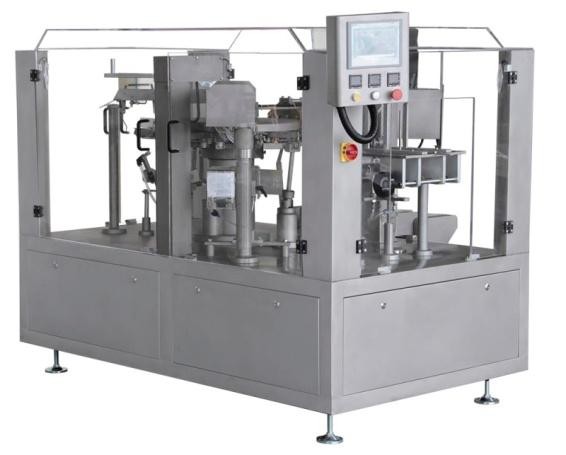

Down-paper Packaging Machine







Application:

Full automatic premade pouch bagger, featured with rapid reaction, reliability and quick changeover, is ideal for a large variety of bag types and range. Equipped with Auger filler and Auger elevator, it is widely applied to different kinds of powders

Specification



Models and Processes：

JT-series premade pouch bagger can be clarified into 8 working stations and 6 working stations in terms of station amounts in one machine. Specifically, the whole processes are involved in the following stations:

1- Pouch-picking Station (Required)

2- Date-printing Station (Required)

3- Pouch-opening Station (Required)

4- Material-filling Station-1 (Required)

5- Material-filling Station-2 (Optional)

6- Air-exhausting Station (Optional)

7- Material-detecting Station (Optional)

8- Sealing and Outputting Station (Required)

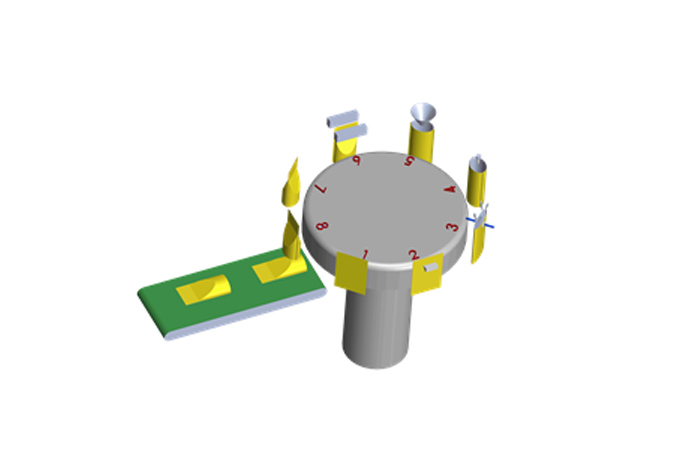

Process Map for Baggers with 8 Working Stations


Notes: Required Station is necessary to complete the package.Optional Station is made as per customer’s request, such as zipper-opening device, dual dosing systems, dual sealing configurations, gas flushing device, air exhausting device, and so on.According to the picture you provided, you have to choose 8 working stations.

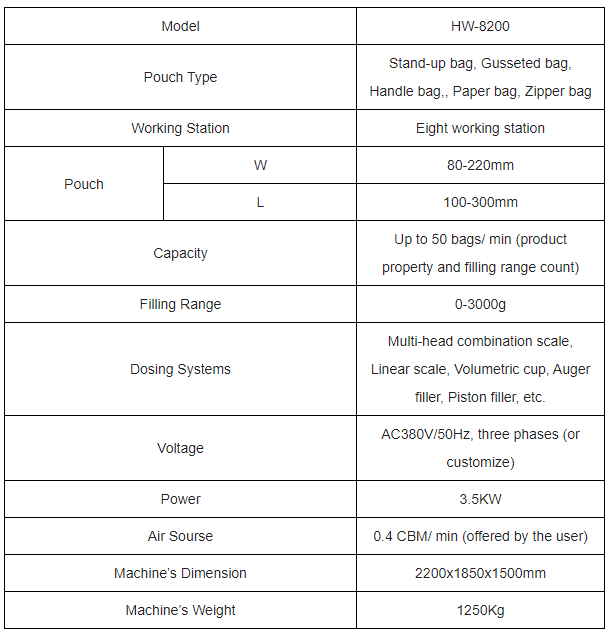

Technical Parameters:
