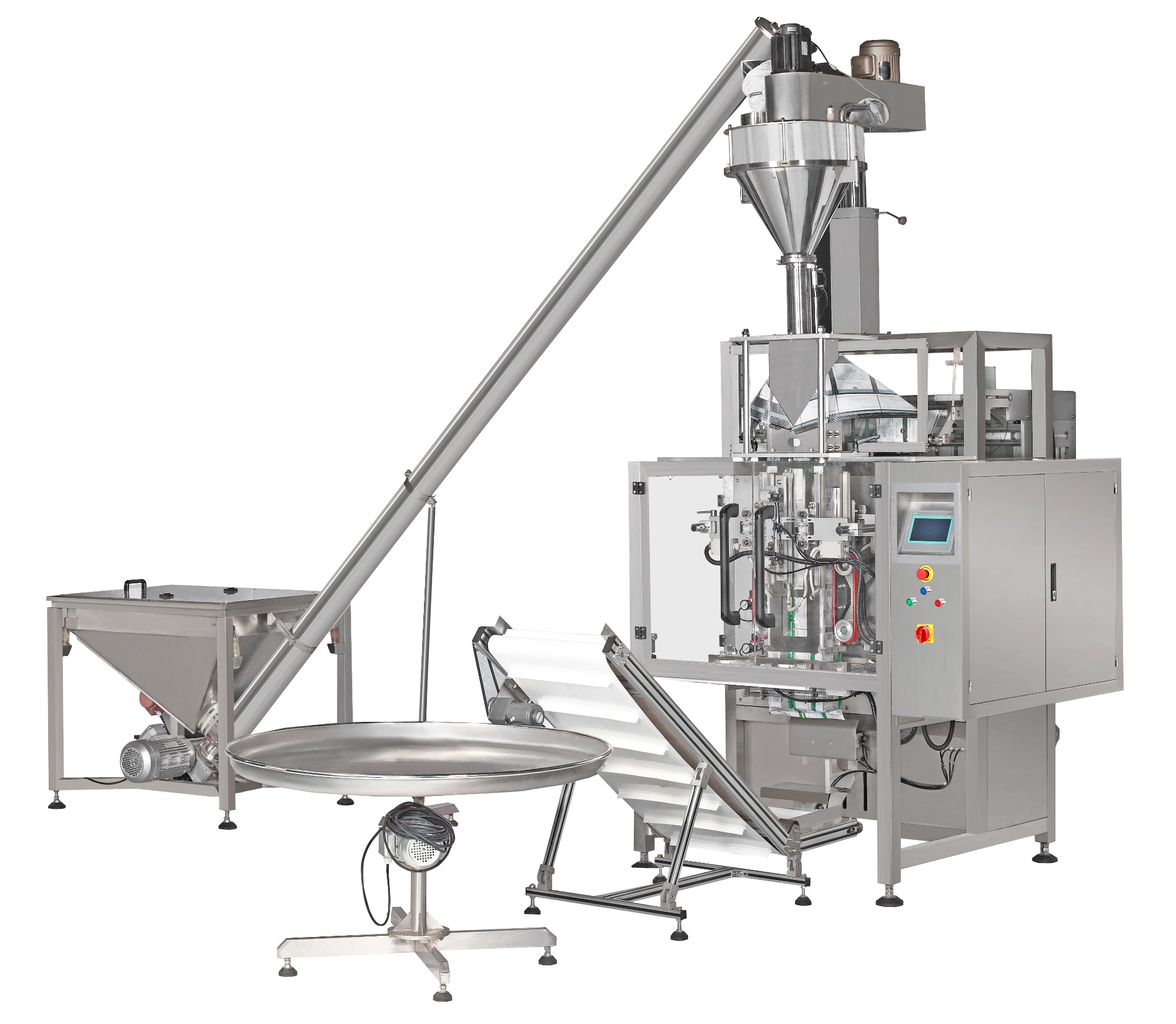

Fully Automatic Vertical Packaging Machinery

Applications:

The packing machine is suitable to packaging powder,such as milk powder,coffee powder, tea powder, coffee powder ,tea powder,face mark powder, spices,sweet flour,flour



Feature:

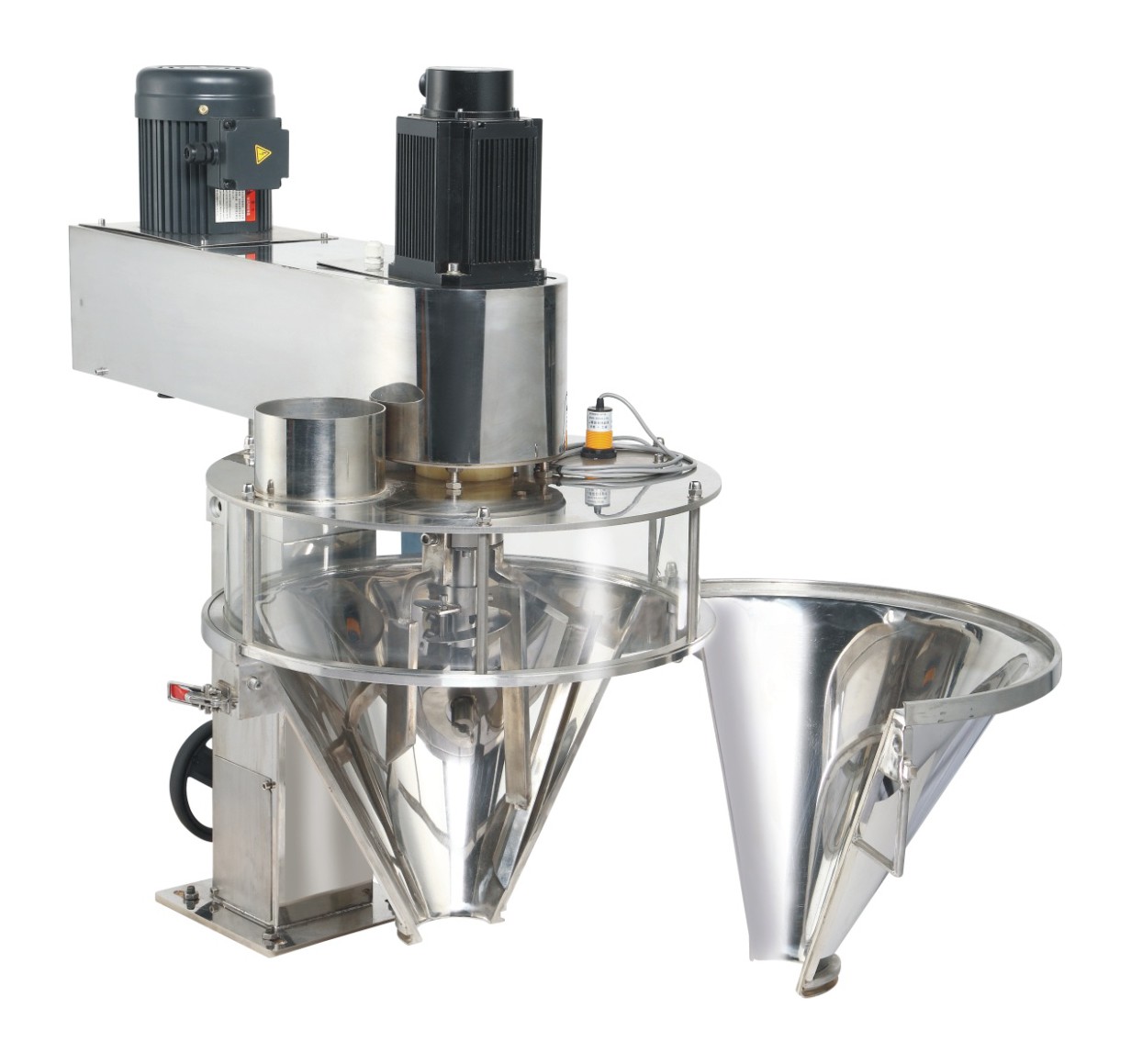

1. By screw machine complete measuring ,filling,etc,suitable for measuring powder material
2. The servo drive system,has the advantages of high precision,stable per.formance
3. Stainless steel open container clean and convenient.
4. Equipment with safety protection so as to meet the requirements of enterprise safety management

5. Intelligent temperature control,accurate temperature control ,ensure nice ,flat seal

6. PLC double pull or single tensile membrane structure chart system,motor sealing and cutting positions adopt automatic correction device

7. Constitute a large display touch screen drive control core,maximum limit to improve the control precision,reliablity and the intellectualized degree of machine

8. The machine and measuring configuration can be done automatically measuring ,feeding ,filling bag,inflatable(exhaust),date printing,full packaging process and auotmatic cutting

9. Perfect automatic alarm protection function,minimize loss,help timely troubleshooting

10. Packing design diversified ,back closure,angle,bag ,punching



Technical parameters
（Type)  HW-820
(packing material) 15L
（bag length)(max) 240 mm
(bag width) 40-128(mm)
(max width of roll film) 5-10(mm)
(packing speed) 500(mm)
(Measuring ragne) 10-60bag/min
(Air consumption) opp/cpp opp/ce pet/pe
(Gas consumption) 620 mm
(power voltage) 220VAC/50HZ
(machine power) 6.5 kw
(Dimension) 1815L X 1520W X 2005H(mm)
(Net weight) 850 kg
